7Mm 4.6Mm 4.1Mm Engine Brake Adjustment Tool Jake Brake Feeler Gauge for Cummins ISX Engine & Detroit Diesel DD15 & DD16 Engines

7mm 4.6mm 4.1mm Engine Brake Adjustment Tool Jake Brake Feeler Gauge Compatible with Cummins ISX Engine and Detroit Diesel DD15 & DD16 Engines

Function:

Jake Brake Feeler Gauge for checking the valve clearance, allow easier insertion between slave pistons contact surface with the exhaust valve adjusting screw

Size:

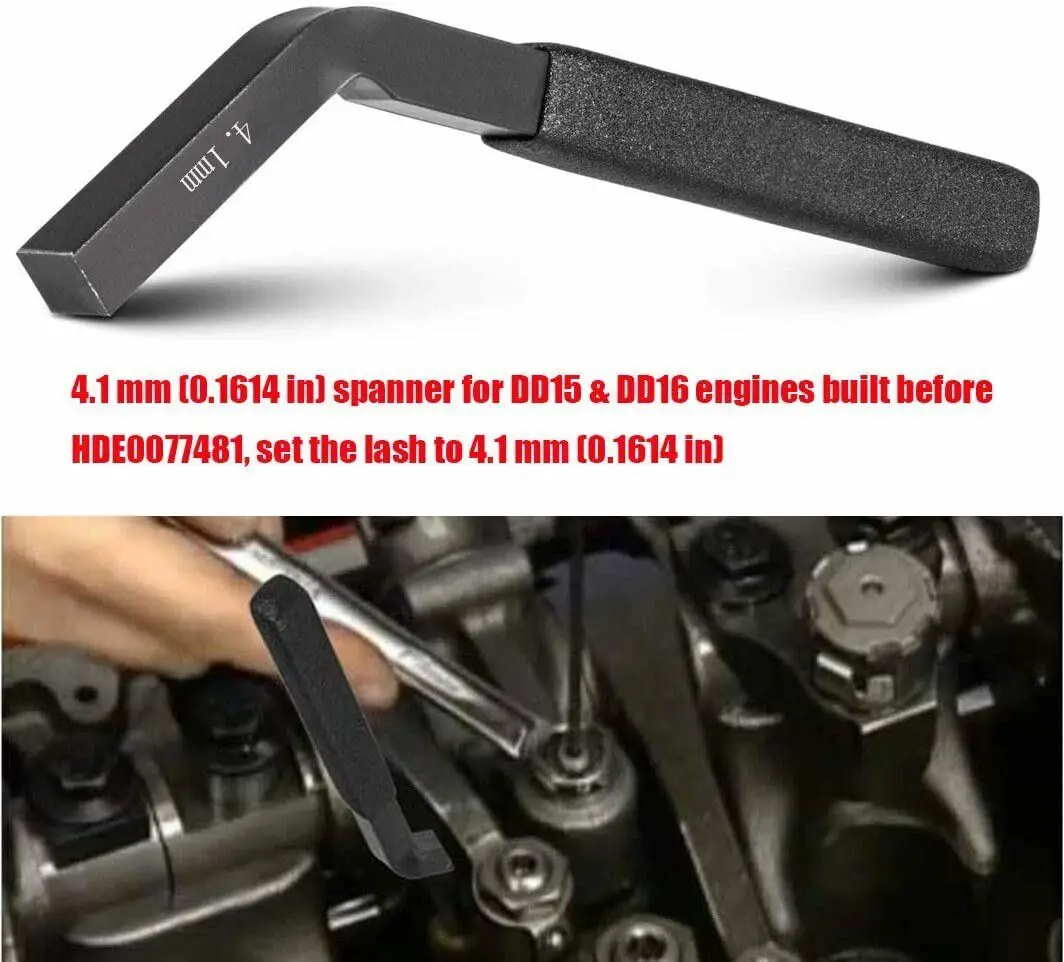

(1) 4.1 mm (0.1614 in) spanner for DD15 & DD16 engines built before HDE0077481, set the lash to 4.1 mm (0.1614 in)

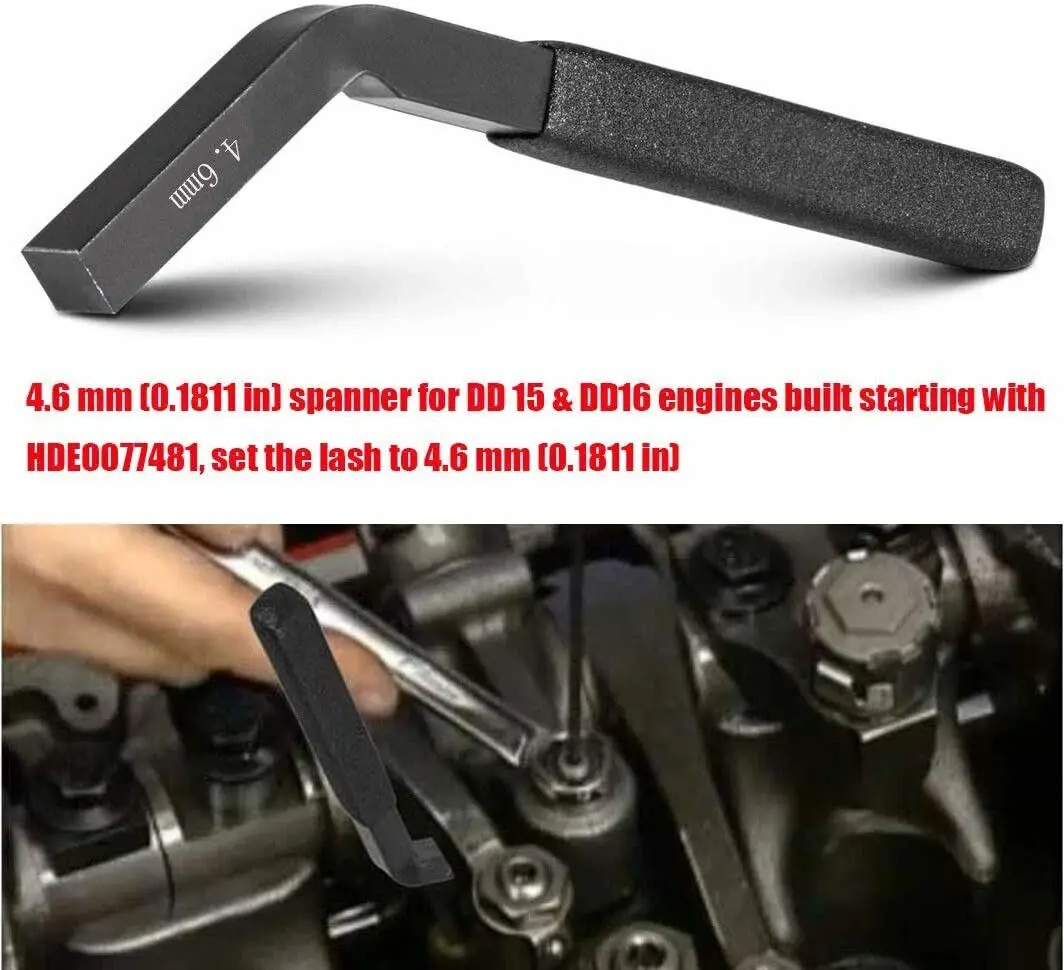

(2) 4.6 mm (0.1811 in) spanner for DD 15 & DD16 engines built starting with HDE0077481, set the lash to 4.6 mm (0.1811 in)

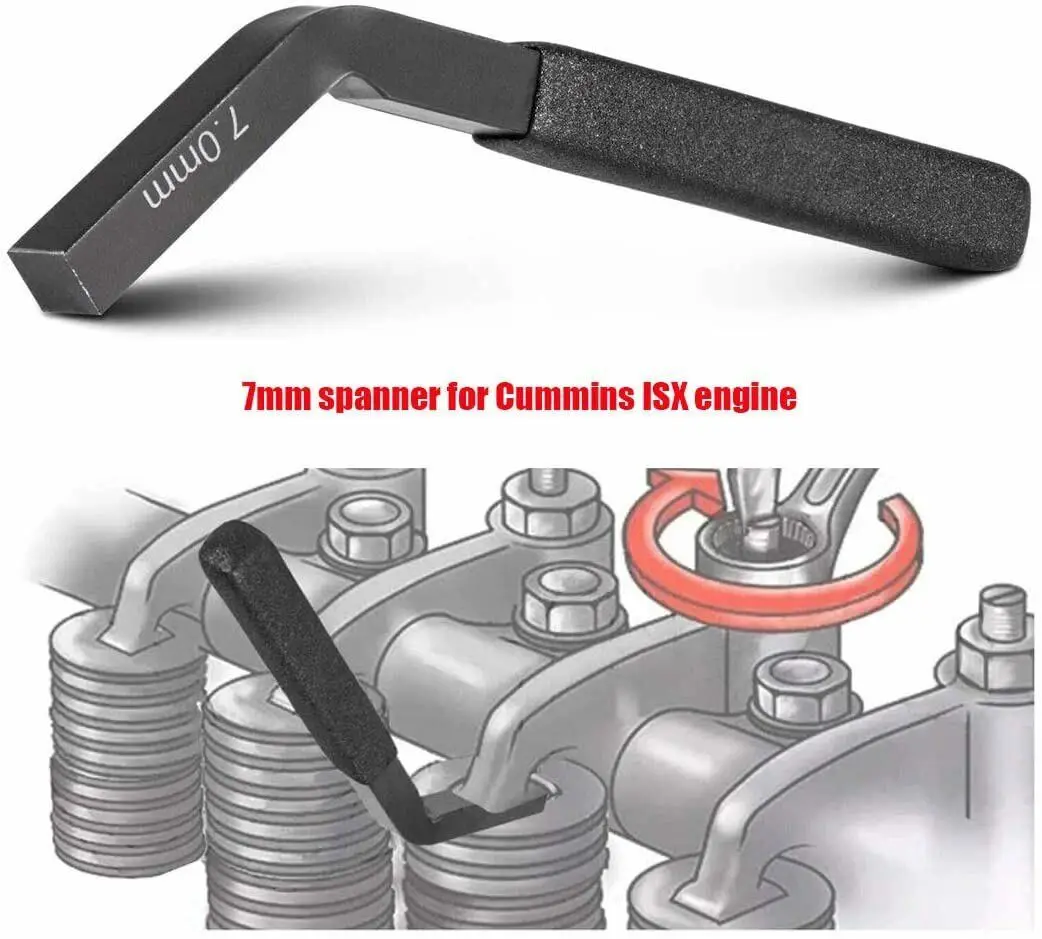

(3) 7mm spanner for Cummins ISX engine

Package Includes:

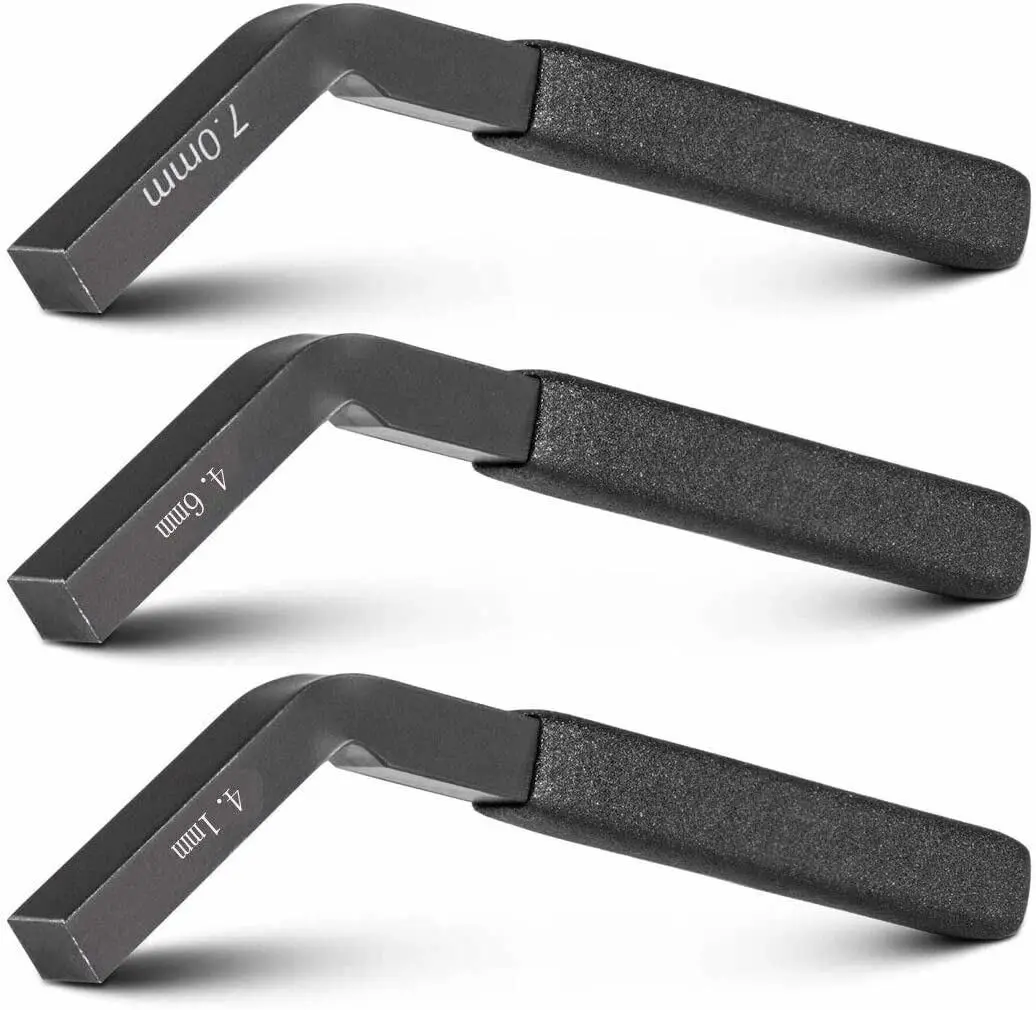

This brake alignment tool set included 7mm 4.6mm and 4.1mm wrench. Replace for W470589042300 W470589022300 and 3163530

Satisfaction Guarantee:

If you're not 100% satisfied with our Tool , please feel free to contact us, simply return it for a full refund in 60 days. Premium Support & 2 Year's Warranty.

4.1+4.6 MM Engine Brake Tools Adjustment Steps

1) Set the lash on all the exhaust adjusting screws first (all the adjusting screws in direct contact with the exhaust valves).

2) Rotate the engine until a given cylinder is at maximum intake lift. When this is reached, the brake lash can be set on this cylinder.

3) When the engine brake rocker arm is in contact with the exhaust valve, set the lash between the engine brake rocker arm adjusting screw and the actuator piston stem.

a. DD15 & DD16 engines built before HDE0077481 use Engine Brake Adjustment tool W470589022300; set the lash to 4.1 mm (0.1614 in.).

b. DD13 engines built before HDE0079072 use Engine Brake Adjustment Tool W470589022300; set the lash to 4.1 mm (0.1614 in.).

4) Lash the engine brakes in the following firing order: 1, 5, 3, 6, 2, and 4.

5) Torque the locknut valve adjusting screw to 50 N·m (37 lb·ft).

7.0MM Engine Brake Tools Adjustment Steps

4.Hold the engine brake lever adjusting screw and tighten the locknut
